Selbstschneidende Einsätze Anfrage zu diesem Produkt

Für belastbare Gewinde und hohe Zugfestigkeit in Kunststoffen und Materialien mit geringer Kernfestigkeit.

Ergibt eine vibrationsfeste, verschleißfreie, hoch belastbare Schraubverbindung  Zum Einsatz in Kunststoff, Hartholz, Laminaten, Leichtmetallen, Gusseisen, Messing, Bronze

Materialkennung
Stahl gelb verzinkt – ZD
Stahl einsatzgehärtet und gelb verzinkt – HZD
Messing – K
Edelstahl 1.4104 – S
Edelstahl 1.4305 – S20

Technische Details

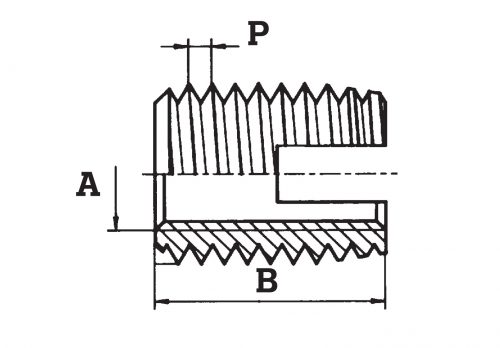

Teilenummer Innengewinde. A Länge. B Außengewinde. P Lochgröße - harte Kunststoffe und Metalle Lochgröße - weiche Kunststoffe und Holz
S03M6ISTS M3 6.00 M5 x 0.5 4.68 - 4.74 4.56 - 4.62
S03M6ISTS20 M3 6.00 M5 x 0.5 4.68 - 4.74 4.56 - 4.62
S03M6ISTK M3 6.00 M5 x 0.5 4.68 - 4.74 4.56 - 4.62
S03M6ISTZD M3 6.00 M5 x 0.5 4.68 - 4.74 4.56 - 4.62
S03M6ISTHZD M3 6.00 M5 x 0.5 4.68 - 4.74 4.56 - 4.62
S04M8ISTS M4 8.00 M6.5 x 0.75 6.01 - 6.11 5.81 - 5.91
S04M8ISTS20 M4 8.00 M6.5 x 0.75 6.01 - 6.11 5.81 - 5.91
S04M8ISTK M4 8.00 M6.5 x 0.75 6.01 - 6.11 5.81 - 5.91
S04M8ISTZD M4 8.00 M6.5 x 0.75 6.01 - 6.11 5.81 - 5.91
S04M8ISTHZD M4 8.00 M6.5 x 0.75 6.01 - 6.11 5.81 - 5.91
S05M10ISTS M5 10.00 M8 x 1 7.36 - 7.48 7.12 - 7.24
S05M10ISTS20 M5 10.00 M8 x 1 7.36 - 7.48 7.12 - 7.24
S05M10ISTK M5 10.00 M8 x 1 7.36 - 7.48 7.12 - 7.24
S05M10ISTZD M5 10.00 M8 x 1 7.36 - 7.48 7.12 - 7.24
S05M10ISTHZD M5 10.00 M8 x 1 7.36 - 7.48 7.12 - 7.24
S06M14ISTS M6 14.00 M10 x 1.5 9.0 - 9.2 8.6 - 8.8
S06M14ISTS20 M6 14.00 M10 x 1.5 9.0 - 9.2 8.6 - 8.8
S06M14ISTK M6 14.00 M10 x 1.5 9.0 - 9.2 8.6 - 8.8
S06M14ISTZD M6 14.00 M10 x 1.5 9.0 - 9.2 8.6 - 8.8
S06M14ISTHZD M6 14.00 M10 x 1.5 9.0 - 9.2 8.6 - 8.8
S08M15ISTS M8 15.00 M12 x 1.5 11.0 - 11.2 10.6 - 10.8
S08M15ISTS20 M8 15.00 M12 x 1.5 11.0 - 11.2 10.6 - 10.8
S08M15ISTK M8 15.00 M12 x 1.5 11.0 - 11.2 10.6 - 10.8
S08M15ISTZD M8 15.00 M12 x 1.5 11.0 - 11.2 10.6 - 10.8
S08M15ISTHZD M8 15.00 M12 x 1.5 11.0 - 11.2 10.6 - 10.8
S10M18ISTS M10 18.00 M14 x 1.5 13.0 - 13.2 12.6 - 12.8
S10M18ISTS20 M10 18.00 M14 x 1.5 13.0 - 13.2 12.6 - 12.8
S10M18ISTK M10 18.00 M14 x 1.5 13.0 - 13.2 12.6 - 12.8
S10M18ISTZD M10 18.00 M14 x 1.5 13.0 - 13.2 12.6 - 12.8
S10M18ISTHZD M10 18.00 M14 x 1.5 13.0 - 13.2 12.6 - 12.8
S12M22ISTS M12 22.00 M16 x 1.5 15.0 - 15.2 14.6 - 14.8
S12M22ISTS20 M12 22.00 M16 x 1.5 15.0 - 15.2 14.6 - 14.8
S12M22ISTK M12 22.00 M16 x 1.5 15.0 - 15.2 14.6 - 14.8
S12M22ISTZD M12 22.00 M16 x 1.5 15.0 - 15.2 14.6 - 14.8
S12M22ISTHZD M12 22.00 M16 x 1.5 15.0 - 15.2 14.6 - 14.8
S14M24ISTS M14 24.00 M18 x 1.5 17.0 - 17.4 16.6 - 16.8
S14M24ISTS20 M14 24.00 M18 x 1.5 17.0 - 17.4 16.6 - 16.8
S14M24ISTK M14 24.00 M18 x 1.5 17.0 - 17.4 16.6 - 16.8
S14M24ISTZD M14 24.00 M18 x 1.5 17.0 - 17.4 16.6 - 16.8
S14M24ISTHZD M14 24.00 M18 x 1.5 17.0 - 17.4 16.6 - 16.8
S16M25ISTS M16 25.00 M20 x 1.5 19.0 - 19.6 18.6 - 18.8
S16M25ISTS20 M16 25.00 M20 x 1.5 19.0 - 19.6 18.6 - 18.8
S16M25ISTK M16 25.00 M20 x 1.5 19.0 - 19.6 18.6 - 18.8
S16M25ISTZD M16 25.00 M20 x 1.5 19.0 - 19.6 18.6 - 18.8
S16M25ISTHZD M16 25.00 M20 x 1.5 19.0 - 19.6 18.6 - 18.8
